Lamborghini Revuelto
Lamborghini has unveiled their latest masterpiece, the Lamborghini Revuelto just in time for their 60th anniversary,
This is Lamborghini’s newest addition to their supercar lineup, which was revealed on March 29, 2023. The online launch showcased the car’s technical specifications and images, as it was introduced as the successor to the popular Aventador model.
Keeping up with the brand’s tradition of naming their cars after famous bulls, the Revuelto is named after a bull that existed in Spain back in 1880. It’s also the first Lamborghini to feature a plug-in hybrid propulsion system, making it a groundbreaking addition to their lineup.
Body and Chassis Design
The Lamborghini Revuelto boasts a state-of-the-art body and chassis design that reflects the manufacturer’s commitment to creating high-performance sports cars.
The car features a multi-technology carbon fiber monocoque frame with a forged composite front structure. This enhances the vehicle’s strength while reducing its weight.
The body of the Revuelto is made entirely of carbon fibre, with aluminium doors and thermoplastic front and rear bumpers.
This combination of materials ensures that the car is as light as possible without compromising on strength or durability.
The aerodynamics of the Revuelto are also impressive, with an active rear wing that features three different positions, depending on the driving mode and dynamics.
This technology helps to reduce drag and increase downforce, resulting in a more stable and agile driving experience.
Overall, the Lamborghini Revuelto is a testament to the manufacturer’s ongoing commitment to innovation and excellence in the field of sports car design.

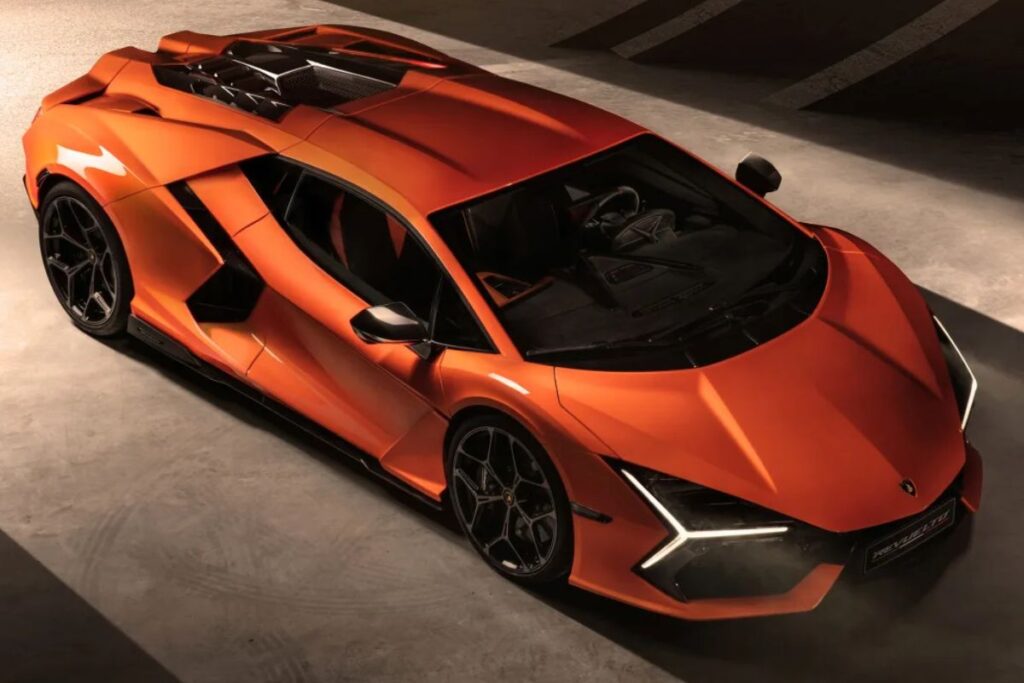

Lamborghini Revuelto’s Dimensions
The Lamborghini Revuelto boasts impressive dimensions that are sure to turn heads on the road.
The car measures 4947 mm in length, 2033 mm in width (excluding mirrors), and 2266 mm in width (including mirrors). At a height of just 1160 mm, it is sleek and aerodynamic, designed to cut through the air with ease.
The Revuelto’s front track measures 1720 mm, while the rear track is slightly narrower at 1701 mm, giving it a stable and agile stance on the road. Its wheelbase measures 2779 mm, providing ample space for passengers and making for a comfortable ride.
Despite its size, the Revuelto is surprisingly light, with a dry weight of just 1772 kg.
Its weight distribution is also noteworthy, with 44% of the weight on the front and 56% on the rear, optimizing the car’s performance and handling.
Overall, the Lamborghini Revuelto’s dimensions are a testament to the car’s exceptional engineering and design, ensuring that it will deliver a thrilling driving experience.

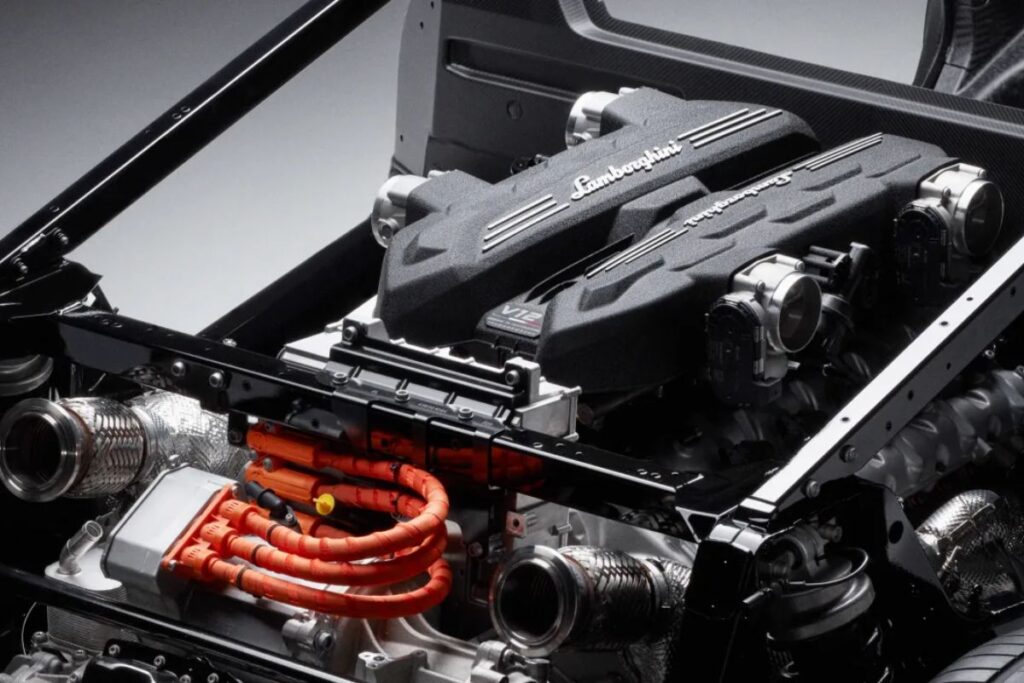

Internal Combustion Engine
The Lamborghini Revuelto boasts a powerful V12 NA 6.5-liter engine. This delivers a maximum power of 825 CV (607 kW) at 9250 rpm and a maximum torque of 725 Nm at 6750 rpm.
The engine has a displacement of 6498.5 cm³ (396.6 cu in) and a bore x stroke of 95 mm x 76.4 mm (3.74 x 3.01 in).
The compression ratio of the engine is 12.6:1, and the weight-to-power ratio is 1.75 kg/CV.
The engine management system is PFI by Bosch, and the car has an emission control system that includes four pre-cats close to the engine and four lambda sonds.
The car meets the EU6, LEV III, and CN6b emission standards.
The engine is cooled by a liquid-cooled dedicated circuit for HV components, and it has a dry sump lubrication system.
When combined with the electric motors, the engine produces a total power output of 1015 CV.
The Lamborghini Revuelto boasts an impressive internal combustion engine with a maximum torque of 725 Nm at 6750 rpm.
This powertrain provides a remarkable weight-to-power ratio of 1.75 kg/CV.
The engine is equipped with a dry-sump lubrication system, ensuring smooth and efficient operation.
The cooling system is liquid-cooled with a dedicated circuit for HV components, ensuring optimal performance and durability.
The engine management system is provided by Bosch’s PFI, providing precise control over the powertrain.
The engine complies with EU6, LEV III, and CN6b emission standards and is equipped with four pre-cats close to the engine and four lambda sonds for efficient emission control.
With these features, the Revuelto’s internal combustion engine is a true testament to Lamborghini’s engineering prowess.
Lamborghini Revuelto’s Performance
The Lamborghini Revuelto is a game-changer in the world of high-performance cars.
This super sports car is not only a High-Performance Electrified Vehicle (HPEV), but it’s also a technological marvel that delivers unmatched driving pleasure.
The car’s total power output of 1015 CV is achieved through a combination of a brand-new 12-cylinder internal combustion engine, three high-density electric motors, and a revolutionary transversal dual clutch e-gearbox.
This combination of technologies takes driving thrills to the next level and sets a new benchmark for the industry.
When it comes to performance, the Lamborghini Revuelto is a true speed demon.
With a top speed of over 350 km/h, this car is built to fly down the road.
It can go from 0-100 km/h (0-62 mph) in just 2.5 seconds, making it one of the fastest cars on the market.
The Revuelto is engineered to deliver maximum power and torque while maintaining excellent handling and control.
Drivers can expect a thrilling ride that pushes the limits of what a sports car can do.
The Revuelto is not just about raw speed, though. It’s also designed to deliver an unparalleled driving experience.
The combination of driving and hybrid modes allows the active intersection between the V12 engine and e-motors to provide different driving experiences.
The car’s revolutionary transversal dual clutch e-gearbox is installed behind the engine and offers several advantages.
Additionally, the Revuelto boasts a shifted aerodynamic paradigm based on four newly defined pillars.
The Lamborghini Integrated Vehicle Dynamics (LDVI) also underwent a redesign to enhance the driving experience.
Lamborghini Revuelto’s Transmission system
The Lamborghini Revuelto comes with a cutting-edge transmission system that promises to deliver a high-performance driving experience.
The car features an AMT (Automated Manual Transmission) gearbox with eight gears that is controlled by a Dual Clutch system.
This advanced transmission system provides lightning-fast gear changes that enhance the car’s acceleration and overall performance.
The dual-clutch system works by pre-selecting the next gear and engaging the clutch in anticipation of the gear change, which results in a smoother and faster gear shift.
The Revuelto’s advanced transmission system is one of the many features that make this hybrid supersports car a true technological marvel.
Hybrid System
The Lamborghini Revuelto is a hybrid supercar that combines a powerful internal combustion engine with an advanced electric powertrain.
The hybrid system is composed of a lithium-ion high-specific-power battery with pouch cells, a rear P2-P3 eMotor generator that delivers 110 kW at 10,000 rpm, and a front e-axle that produces 220 kW at 3,500 rpm.
The hybrid system in the Revuelto allows for a combined power output of 1015 CV (825 CV from the internal combustion engine and 190 CV from the electric powertrain).
The advanced battery technology also enables the supercar to drive in electric-only mode for short distances, reducing emissions and fuel consumption.
The hybrid system in the Revuelto also helps to improve performance, with the electric motors providing instant torque that can assist the V12 engine during acceleration.
The hybrid system also improves handling, with the front e-axle providing additional traction and stability in all driving conditions.
Overall, the hybrid system in the Lamborghini Revuelto represents a significant step forward in the development of high-performance hybrid supercars.
It combines advanced electric powertrain technology with the raw power and performance of a traditional internal combustion engine.
Steering And Suspension
The Lamborghini Revuelto boasts a modern and advanced steering and suspension system that ensures exceptional handling and stability on the road.
The car features an EPS (Electric Power Steering) system, which provides more precise and responsive steering compared to traditional hydraulic systems.
In addition, the Revuelto has a Front and Rear Double Wishbone suspension system with LMR (Lamborghini Magneto Rheological) dampers.
This uses a magnetic field to adjust the damping force of the shock absorber in real-time, ensuring optimal control and ride comfort.
The car’s advanced control system includes an Electronic Stability Control (ESC) that integrates Anti-lock Braking System (ABS). It also has a Traction Control System (TCS) with different characteristics depending on the driving mode selected.
This system ensures that the car maintains stability and traction in any driving condition, providing a safe and thrilling driving experience.

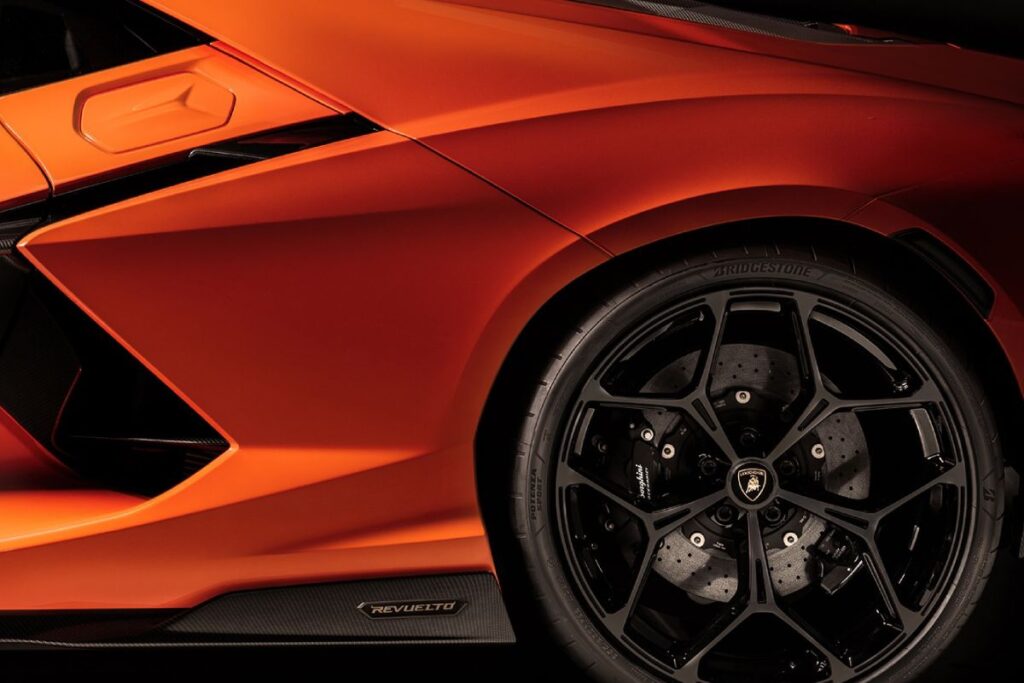

Lamborghini Revuelto’s Wheel
The Lamborghini Revuelto’s wheels are designed to match its incredible performance.
The front rims measure 20 x 9.5j, with the option of 21 x 9.5j, while the rear rims measure 21 x 12j, with the option of 22 x 12.5j.
The front tires are 265/35 ZR20 Potenza Sport Runflat, with an optional 265/30 ZR21 Runflat, while the rear tires measure 345/30 ZR21 Potenza Sport Runflat, with an optional 355/25 ZR22 Runflat.
These tires provide excellent grip and stability, ensuring that the Revuelto delivers outstanding handling and a smooth ride.
So, whether you’re cruising down the highway or pushing the car to its limits on the racetrack, the Lamborghini Revuelto’s wheels and tires are up to the task.
Lamborghini Revuelto’s Driving Modes
And over here, we have four driving modes.
So, three of them we’re familiar with: Strada, Sport, and Corsa. And the fourth is a new one called “CITTA”.
In this new mode, “CITTA” which means “city” in Italian. It defaults to EV-only mode and limits power to just 180 brake horsepower. If the battery is running low, though, the V12 can fire up and fully recharge it in just six minutes.
In Strada mode, the V12 is always on, and the maximum available power rises to 874 brake horsepower. Active Aero and torque vectoring are now switched on.
In Sport mode, the maximum power goes up to 895 brake horsepower.
The exhaust clears its throat, and the gearbox and suspension are all sharpened up.
Finally, with Corsa Plus performance mode engaged, everything is unleashed, including the full 1001 brake horsepower.
The ESC can now be fully disengaged and launch control can be activated.
Lamborghini Revuelto’s Break
The Lamborghini Revuelto comes equipped with CCB Plus (Carbon Ceramic Brakes Plus) brakes.
The brakes feature fixed monoblock callipers in aluminium with 10 pistons in the front and 4 pistons in the rear.
The carbon ceramic brakes measure 410x38mm discs in the front and 390x32mm discs in the rear, providing exceptional stopping power for this high-performance vehicle.
The CCB Plus brakes offer superior performance and durability. Besides, it is also lighter than traditional brakes, resulting in improved overall vehicle performance.
Lamborghini Revuelto’s Safety
The Lamborghini Revuelto is not only designed to offer exceptional performance but also ensure the safety of the driver and passenger.
The car comes equipped with multiple airbags, including driver, passenger, and side airbags.
Additionally, knee airbags are available in certain markets to provide extra protection in the event of a collision.
These safety features are important to ensure that the driver and passengers remain safe while enjoying the incredible driving experience that the Revuelto provides.
Consumption
Unfortunately, there is no information provided regarding the consumption or CO2 emissions of the Lamborghini Revuelto.
It is mentioned that the vehicle is not yet offered for sale and is therefore not subject to Directive 1999/94/EC. Also, the fuel consumption and emissions data are in the same type of approval stage.

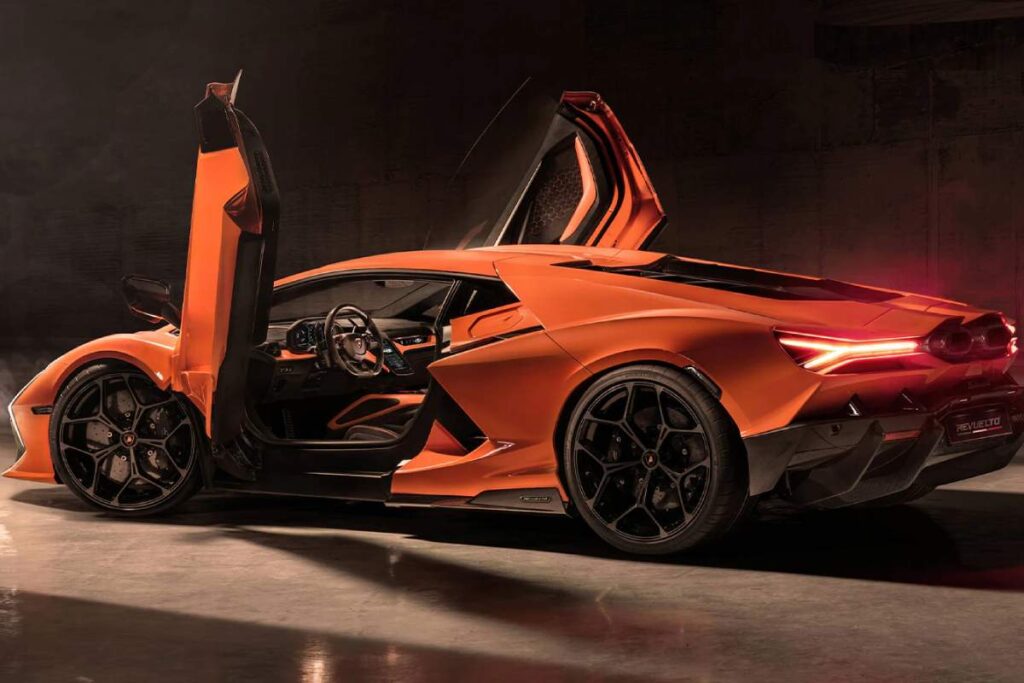

Lamborghini Revuelto’s Exterior
Now, let us take a closer look at the exterior of the new Lamborghini Revuelto.
This car is not only honouring the Lamborghini tradition, but it’s also ushering in a new era in terms of its design.
Now, if you’re familiar with Lamborghini’s iconic single centre line, you’ll notice that the Revuelto’s silhouette follows that same tradition.
However, the car’s design is also marked by sharply sculpted lines and smooth negative radii. This creates a high-tech shape that puts the Revuelto unmistakably in the new generation of Lamborghini supercars.
And let’s not forget about the iconic V12 engine, which is proudly on display in the rear of the car, celebrating Lamborghini’s engineering prowess.
Overall, the Revuelto’s exterior design is truly a work of art and a testament to Lamborghini’s commitment to pushing the boundaries of automotive design.

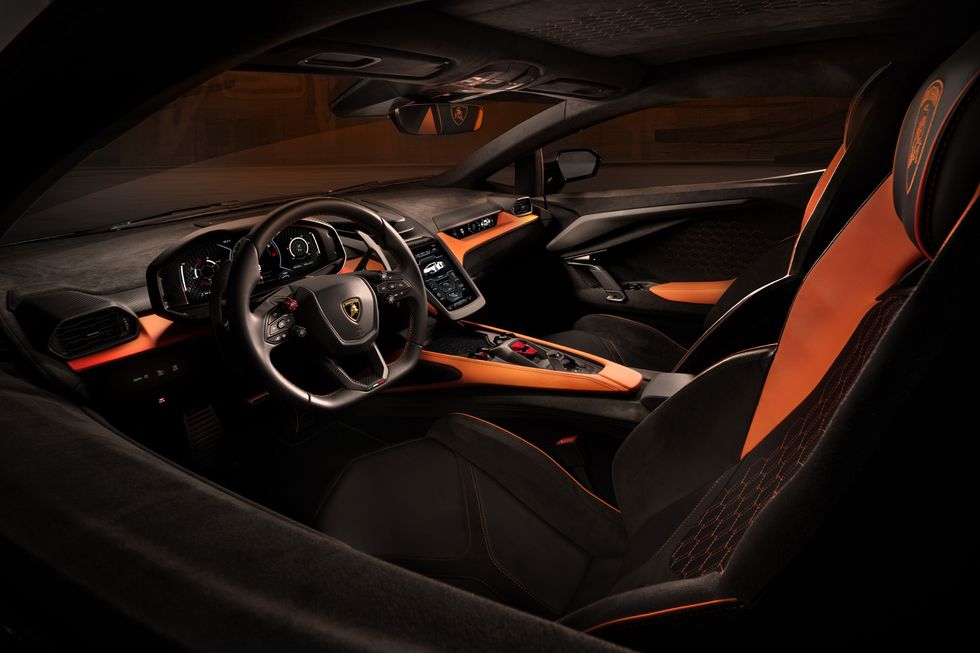

Lamborghini Revuelto’s Interior
Moving inside the Revuelto, you’ll be amazed by its stunning interior.
Specifically, it’s completely new, of course, and the first thing is these seats. So, they’re nicely bolstered, but the middle sections are quite rigid.
The cockpit of the car has been designed to make you feel like a pilot. The design focus on simplicity, symmetry, and a driver-centered approach.
The futuristic environment creates a seamless connection between you and the car, giving you the ultimate driving experience.
The hexagon-shaped elements of the interior are not only reminiscent of past Lamborghini models but also feature cutting-edge functionality.
Moreover, there is actually a decent amount of space for chucking a few squishy bags in there behind the seats. There is also a shelf for putting all your stuff on behind you.
All of these elements work together to create a unique and empowering driving experience.
Take Away
With 1015 horsepower, all-wheel drive, a dual-clutch transmission, and three electric motors, the Revuelto has an impressive list of features, but what really sets it apart is the V12 engine.
Only Lamborghini would dare to launch a 6.5-liter V12 engine that revs up to 9500 rpm in today’s world.
The Revuelto has the potential to become the next iconic model for Lamborghini, just like its predecessor, the legendary Aventador.
This can only happen if it delivers on its promise to provide an emotional driving experience.
This emotional driving experience is what made its predecessor, the legendary Aventador, so popular.
